Bulk Modifying Project Templates for Specific Permitting Jurisdictions

[cwiesen]

Project/Workflow Name:

Bulk Modifying Project Templates for Specific Permitting Jurisdictions

Objective:

To streamline the process of preparing project templates for specific permitting jurisdictions by programmatically deleting views, renaming sheets, and updating schedules according to jurisdiction requirements.

Workflow Recording

Tools & Features Used:

• Maestro Tools: Script generation automation for family type creation and parameter updates

Workflow Overview:

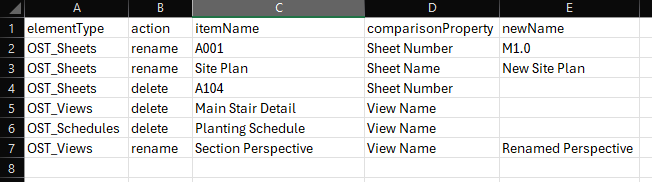

1. CSV Preparation: Prepared a CSV file containing the necessary changes for views, sheets, and schedules.
2. Script Setup: Used Maestro’s Script Generator to automate the deletion of views matching the jurisdiction’s criteria.
3. Script Update: Programmatically updated sheet names to align with the required naming conventions.
4. Error Management: Leveraged AI for handling errors and resolving issues automatically during the process.
5. Future Use: Saved the CSV file as a reusable template for future projects, minimizing repetitive manual adjustments.

Prompt:

I have a CSV located on my desktop called “File Prep Legend.csv”. Set the path as a global parameter. The first row has headers and I would like to create a dictionary using the data. The dictionary key would be the itemName. Once the dictionary has been created I would like to follow these steps:

1. Using the elementType, match the internal Revit element category and gather all elements that match the category.
2. Use the comparisonProperty to determine which element property to compare the itemName to for a match.
3. If the action is delete then delete the element, otherwise continue.
4. If the action is rename then replace the current comparisonProperty with the newName.

Generated Code:

import csv
import clr
from Autodesk.Revit.DB import *

#Global Parameter for file path
import os

# Global Parameter for file path
CSV_PATH = os.path.join(os.environ['USERPROFILE'], 'Desktop', 'File Prep Legend.csv')

# Function to read CSV and create a dictionary
def create_dictionary_from_csv(csv_path):
    data_dict = {}
    with open(csv_path, 'r', encoding='utf-8-sig') as csvfile:  # Use utf-8-sig to handle BOM
        reader = csv.DictReader(csvfile)
        print(f"CSV Headers: {reader.fieldnames}")  # Debugging: Print CSV headers
        for row in reader:
            try:
                item_name = row['itemName']
                data_dict[item_name] = {
                    'elementType': row.get('elementType', '').strip(),
                    'comparisonProperty': row.get('comparisonProperty', '').strip(),
                    'action': row.get('action', '').strip(),
                    'newName': row.get('newName', '').strip()
                }
            except KeyError as e:
                print(f"Missing key in CSV row: {e}. Row data: {row}")
    return data_dict

# Function to get BuiltInCategory from string
def get_built_in_category(category_name):
    try:
        return getattr(BuiltInCategory, category_name)
    except AttributeError:
        print(f"BuiltInCategory {category_name} not found.")
        return None

# Function to process elements in Revit
def process_elements_in_revit(data_dict, doc):
    for item_name, item_data in data_dict.items():
        element_type = item_data['elementType']
        comparison_property = item_data['comparisonProperty']
        action = item_data['action']
        new_name = item_data.get('newName')

        if not element_type or not comparison_property or not action:
            print(f"Skipping item {item_name} due to missing data.")
            continue

        # Match internal Revit BuiltInCategory
        built_in_category = get_built_in_category(element_type)
        if not built_in_category:
            continue

        # Gather all elements in the category
        collector = FilteredElementCollector(doc).OfCategory(built_in_category).WhereElementIsNotElementType()
        elements_to_process = list(collector)  # Convert to list to prevent iterator issues

        for element in elements_to_process:
            try:
                # Compare the property value to itemName
                param = element.LookupParameter(comparison_property)
                if param and param.AsString() == item_name:
                    if action == "delete":
                        doc.Delete(element.Id)
                    elif action == "rename" and new_name:
                        param.Set(new_name)
            except Exception as inner_exception:
                print(f"Error processing element {element.Id}: {inner_exception}")


data = create_dictionary_from_csv(CSV_PATH)
doc = __revit__.ActiveUIDocument.Document  # Access the active Revit document
t = Transaction(doc, "Process Project")
t.Start()
try:
    process_elements_in_revit(data, doc)
except Exception as e:
    print(f"An error occurred: {e}")
finally:
    t.Commit()

Results:

The project template was successfully modified to meet the permitting requirements, with the following categories affected: Views, Sheets, and Schedules. By reusing the CSV, future projects can now be prepared quickly and consistently.

Visuals

Challenges & Insights:

• Challenges: Ensuring CSV data matched Revit’s parameters precisely for seamless updating.
• Insights: Automating the process with a reusable CSV dramatically reduces the time and effort required for these modifications.
